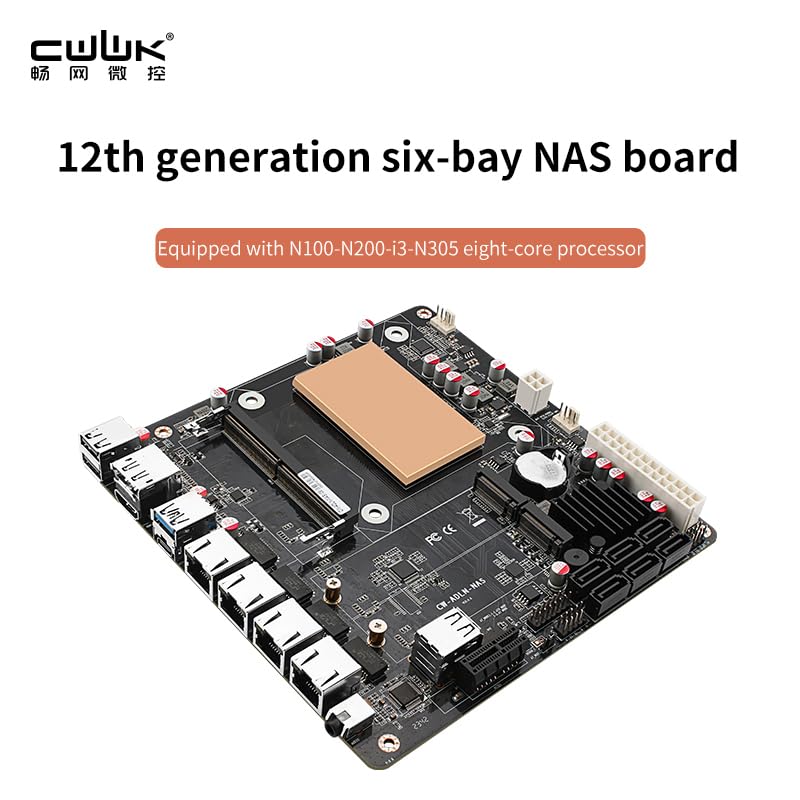

Introducing the Intel 12th Generation Alder Lake-N low-power processor, perfectly crafted to deliver robust performance in a standard 17x17 Mini-ITX form factor. It's designed for compatibility with 115X series radiators, ensuring easy integration into your existing setup.
This compact powerhouse features dual M.2 NVMe x1 signal (PCIe3.0) slots supporting 2280 size drives, and six SATA3.0 ports equipped with the JMB585 chip, offering high-speed 6Gbps data transfer. With four Intel i226-V 2.5G network card chips and a SO-DIMM DDR5 memory slot compatible with 4800, 5200, and 5600MHz, connectivity and speed are right at your fingertips.
Enjoy stunning visuals with HDMI2.1 and DP1.4b, supporting dual 4K displays at 60Hz. The array of ports includes USB3.0, two USB2.0, and a USB-C 2.0 for versatile connectivity options. Audio and expansion needs are covered with a Realtek-ALC897 3.5mm audio interface and a PCIe x1 slot for additional expansion. Experience the next level of efficiency and power with Alder Lake-N!
-
Six SATA Ports
Provides ample connectivity for multiple drives. -
Low Power Consumption
Operates efficiently with reduced energy usage. -
Pre-Installed Cooler
Comes with a cooler already installed, saving setup time. -
Multiple Network Ports
Includes 4 2.5G Ethernet ports, beneficial for network performance. -
NVMe Cache Support
Supports 2 M.2 NVMe slots for caching purposes. -
Good Performance
Delivers satisfactory performance for NAS and other tasks.
-
Lack of Documentation
Documentation is non-existent, making setup difficult. -
Network Connection Issues
Network connection may drop after some time. -
Initial Boot Issues
First-time startup can be significantly slow. -
Power Header Limitations
Only includes one header for case fan power. -
BIOS Update Challenges
BIOS updates are hard to find and apply. -
PCIe Slot Limitations
PCIe x1 slot use can disable an NVMe drive.
