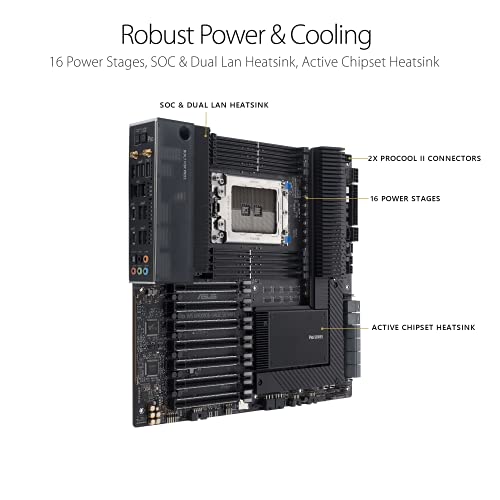

Experience the powerful AMD sWRX8 socket, designed to be ready for AMD Ryzen Threadripper PRO series processors. This innovative platform offers exceptional cooling and robust power with 16 power stages, ProCool II connectors, and aluminum VRM and M.2 heatsinks. Its comprehensive cooling solution includes semi-passive SOC and DRAM heatsinks, ensuring optimal performance and reliability.

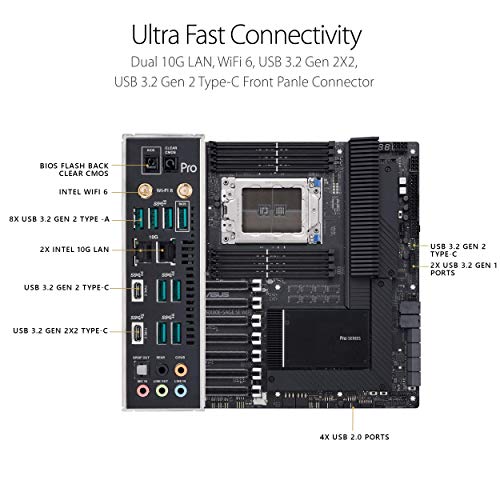

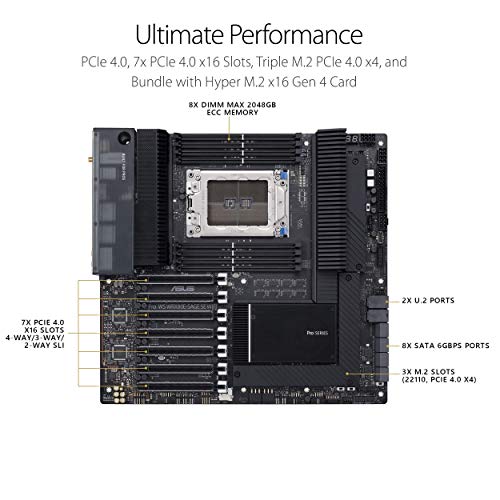

Stay connected with ultrafast USB 3.2 Gen 2x2 Type-C ports, 10 USB 3.2 Gen 2 ports, and triple M.2 PCIe 4.0 slots. The HYPER M.2 X16 Gen 4 card and Intel X550-AT2 dual 10Gb Ethernet with onboard WiFi 6 deliver unbeatable connectivity.

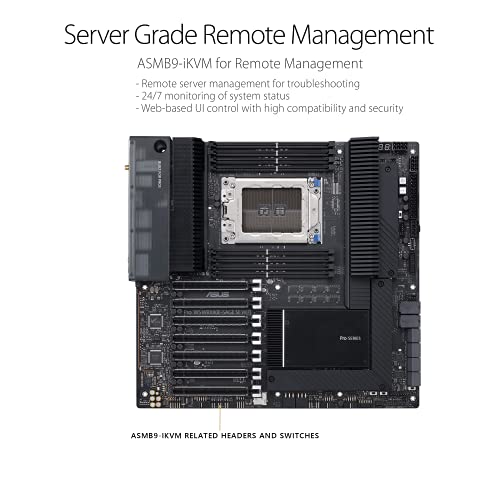

Achieve server-grade remote management with the ASMB9-iKVM BMC chip, offering enhanced hardware-level control and out-of-band management for IT efficiency. Built for 24/7 stability, this platform is thoroughly tested for dependability, validated for compatibility, and equipped with SafeSlot for ultimate security.
-
Reliable Multitasking
Super reliable multitasking motherboard that can handle heavy workstation loads and even full-fledged server workloads. -
Easy BIOS Upgrades
Easy to upgrade BIOS with a dedicated USB BIOS port. -
Diagnostic Features
Q code LEDs for fault codes and diagnosing, providing helpful technical insight. -
Great Benchmarks
Benchmarks scores are evenly spread with great performance for workstation, server, and gaming use. -
High Quality
Built with high-quality materials, ensuring durability and efficiency. -
Wide Web UI Management
Full-blown web UI management accessible via a separate IP address, similar to server functionalities. -
Multiple PCI-E Ports
Offers a high number of PCI-E ports, maximizing potential expansions.
-
Slow Boot Time
If you're expecting a fast boot-up time, you'll be disappointed as it performs numerous checks before posting. -
Complex Fan Control
Fan control management through the motherboard's BMC is tedious and requires another computer on a network. -
Limited Mounting Compatibility
Identified as 'EE-ATX' which limits compatible cases. Some cases that state 'E-ATX' may not fit. -
User Manual Limitations
Only lists Windows 10 as the compatible OS in the manual while the board should be OS independent. -
Backplate Issue
The backplate design makes it difficult to mount the motherboard, requiring bending to make proper contact. -
BIOS Restrictions
BIOS doesn’t allow changing fan speeds or pump speeds for AIO loops easily; you need to log into their IPMI. -
Chipset Fan Issues
Problematic chipset fan detected by BIOS causing critical error reports and requires a complete flash of BMC firmware.
