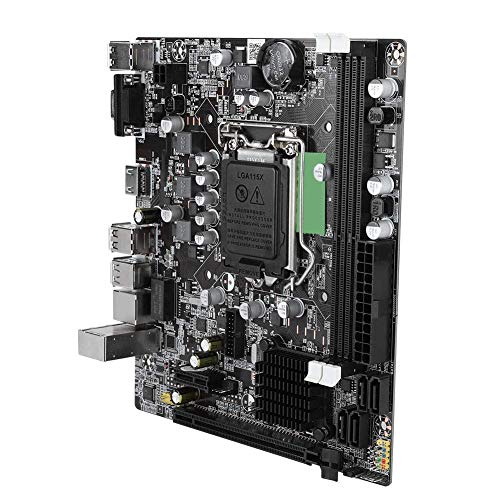

Before You Buy: Our product is always being improved and iterated upon. While you might notice variations in the slot or bottom plate color between batches, rest assured that these differences do not affect performance or function. Designed to fit most ITX cases, our board can boot from USB and features the B75 main chipset, integrated 6-channel sound card, and RTL8105E network card chip.
Model, Memory, and Interface: Equipped with an LGA1155 CPU socket, the board supports i3 and i5 CPUs. It can accommodate up to two 8GB DDR3 memory modules, running at 1066, 1333, or 1600MHz. Connectivity options include 1 USB keyboard and mouse interface, a RJ45 network interface, an audio interface, 2 USB 2.0 ports, and 2 USB 3.0 ports.
Expansion and Performance: The board offers 1 PCI-E×16 graphics card slot, 1 PCI-E×1 slot, 2 USB 2.0 and 2 USB 3.0 slots, 3 SATA 2.0, and 1 SATA 3.0 interface. With 3 power supply modes and support for high-speed SSDs, it promises powerful performance. Enjoy HD graphics with VGA+ output.
Keep in Mind: For the best experience, have this motherboard installed by a professional. If you encounter issues like no display, no boot, or no sound, restoring factory settings or gently cleaning the memory and CPU connections with an eraser can improve performance.
-
Cost-Effective
This motherboard is much cheaper compared to new quality components. -
Compatibility
Works with LGA1155 socket CPUs, supporting various Intel processors including i3, i5, i7, and Xeon E3. -
Immediate Functionality
Operational right out of the box with satisfactory performance. -
Easy Installation
Straightforward to install despite minimal documentation. -
Update Friendly
Supports upgrading the CPU without needing BIOS updates.
-
No Front Audio Header
Missing front audio connectors which may limit functionality. -
Limited Fan Control
Minimal fan control results in fans running at maximum speed constantly. -
Lack of Documentation
Inadequate documentation, making setup harder for some users. -
Single USB Header
Only one USB header available, limiting connectivity options. -
Outdated BIOS Features
BIOS features are very limited and cannot be customized.
